There are several processes that can be performed when creating a Phase Plan:
The process below shows how to create a new Phase Plan.
Once the Phase Plan is created you can also enter:
Enter Phase Plan Times
Enter Timing and Phasing
Assign Phases to Movements
You can also view 16 minute demonstration on creating:
|
Step |
Process |
Result |
|
1 |

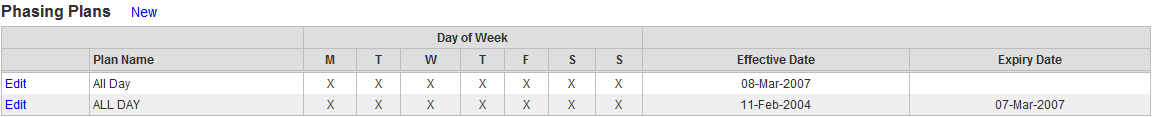

From the Signal System screen, in the Phasing Plans section click on the New button.
|

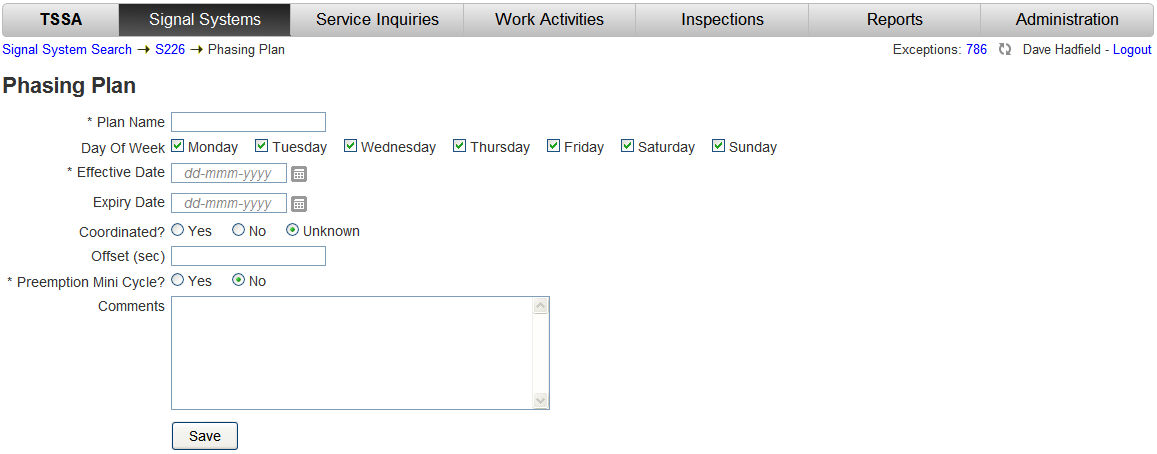

The Phase Plan page is displayed.
|
|
2 |
Type a Plan Name (i.e. All Day, On Peak, PM Peak, etc.). Check the Days Of Week when the Plan is effective. Enter the Effective Date that the Plan first goes into effect. Indicate if the signal system is Coordinated with another. If Coordinated, enter the number of seconds for the Offset. Indicate if a Preemption exists or not for the signal system. Enter any clarifying Comments.
Note: Plan Name and Effective Date are mandatory fields. |

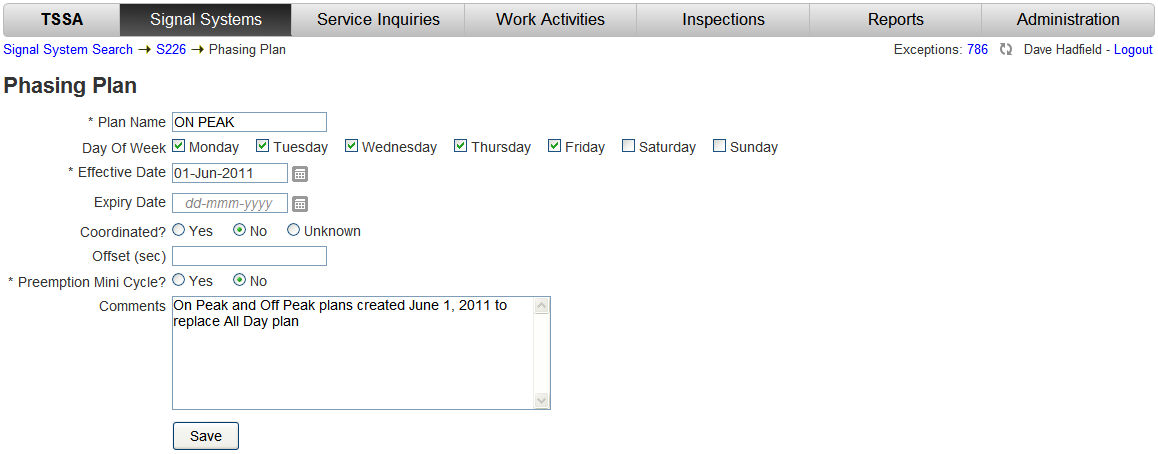

The fields are completed.
|
|
3 |
Click the Save |

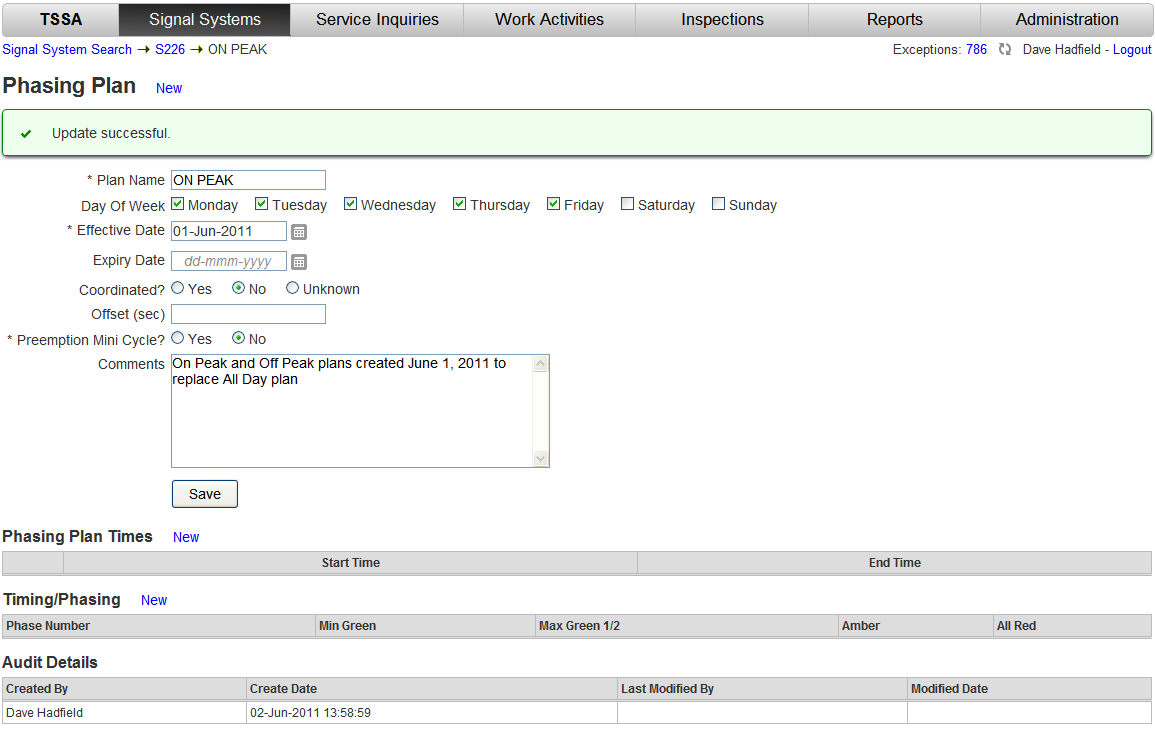

The Phase Plan is created and Phasing Plan Times and Timing/Phasing and Audit Details sections appear.
|
button to generate new Phase Plan.
